Introduces wire.breakout: a 45° diagonal line of configurable length (default 1em) that starts at a given (x, y) and exposes a port anchor <id>-port-<id> at its end point so wires can attach to it as if it were a block port. A synthesized <id>.center anchor is placed opposite the configured port-side so wire.wire with style "u-shape" can auto-detect the port's cardinal side. - x/y accept number, (rel:, to:) and (from:) forms; (from:) sets the start point to the referenced anchor's coordinate. - direction: one of north-east/north-west/south-east/south-west. - Optional label positioned via name-pos (NE/NW/SE/SW); when name-pos is opposite to direction, the label falls back to the start point so it never covers the diagonal line. Label padding matches wire.wire (3pt). Also adds three examples (breakout, breakout-label, breakout-wire) in doc/examples.typ referenced from the docstring so tidy auto-renders them in the manual, and a gallery entry (gallery/test_breakout.typ) demonstrating orthogonal bus fan-out with breakouts in all four directions.
circuiteria
Circuiteria is a Typst package for drawing block circuit diagrams using the CeTZ package.
Examples
|
|
| A bit of everything | |
|
|
| Wires everywhere | |
|
|
| Groups | Rotated |
Note

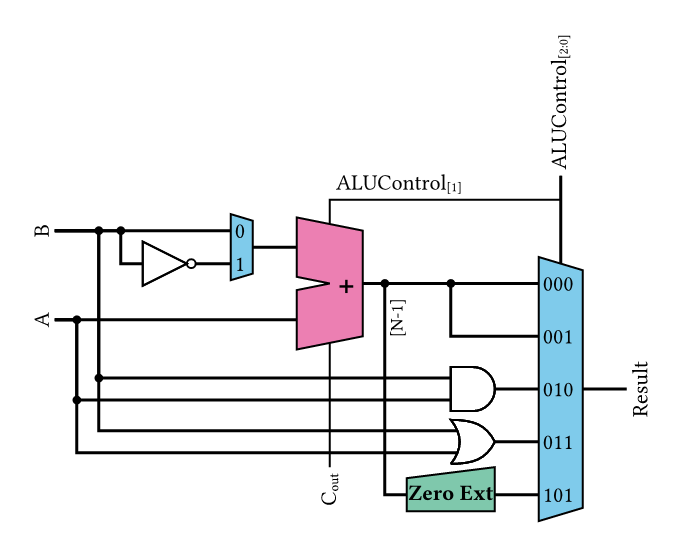

These circuit layouts were copied from a digital design course given by prof. S. Zahno and recreated using this package
Click on the example image to jump to the code.
Usage
For more information, see the manual
To use this package, simply import circuiteria and call the circuit function:
#import "@preview/circuiteria:0.2.1"
#circuiteria.circuit({
import circuiteria: *
...
})
