Descriptions and values are drawn as a single line that never wraps. Because a diagram is scaled to fit the width it is rendered into, the longest label is what decides that scale: one long description makes the whole diagram -- bit cells, indices and every other label with it -- shrink until that line fits. A register whose fields carry a sentence each is then unreadable at any page width, and since each diagram is measured on its own, a document full of them renders every one at a different size. Setting description-width wraps labels at that width instead, so the length of a description no longer decides how large the diagram is drawn. Values wrap at the same right edge as the description they belong to, and the option composes with left-labels, force-descs-on-side and ltr-bits. Wrapping means a label is no longer one line tall, so labels can no longer be spaced by a fixed line height. Each is now offset by the height it actually occupies, measured before it is placed, which is why render gained a context block. The option defaults to none, which keeps the single-line behaviour on the original code paths. With it unset every diagram in the gallery renders byte-identical to before.
rivet-typst
RIVET (Register / Instruction Visualizer & Explainer Tool) is a Typst package for visualizing binary instructions or describing the contents of a register, using the CeTZ package.
It is based on the homonymous Python script
Examples
|

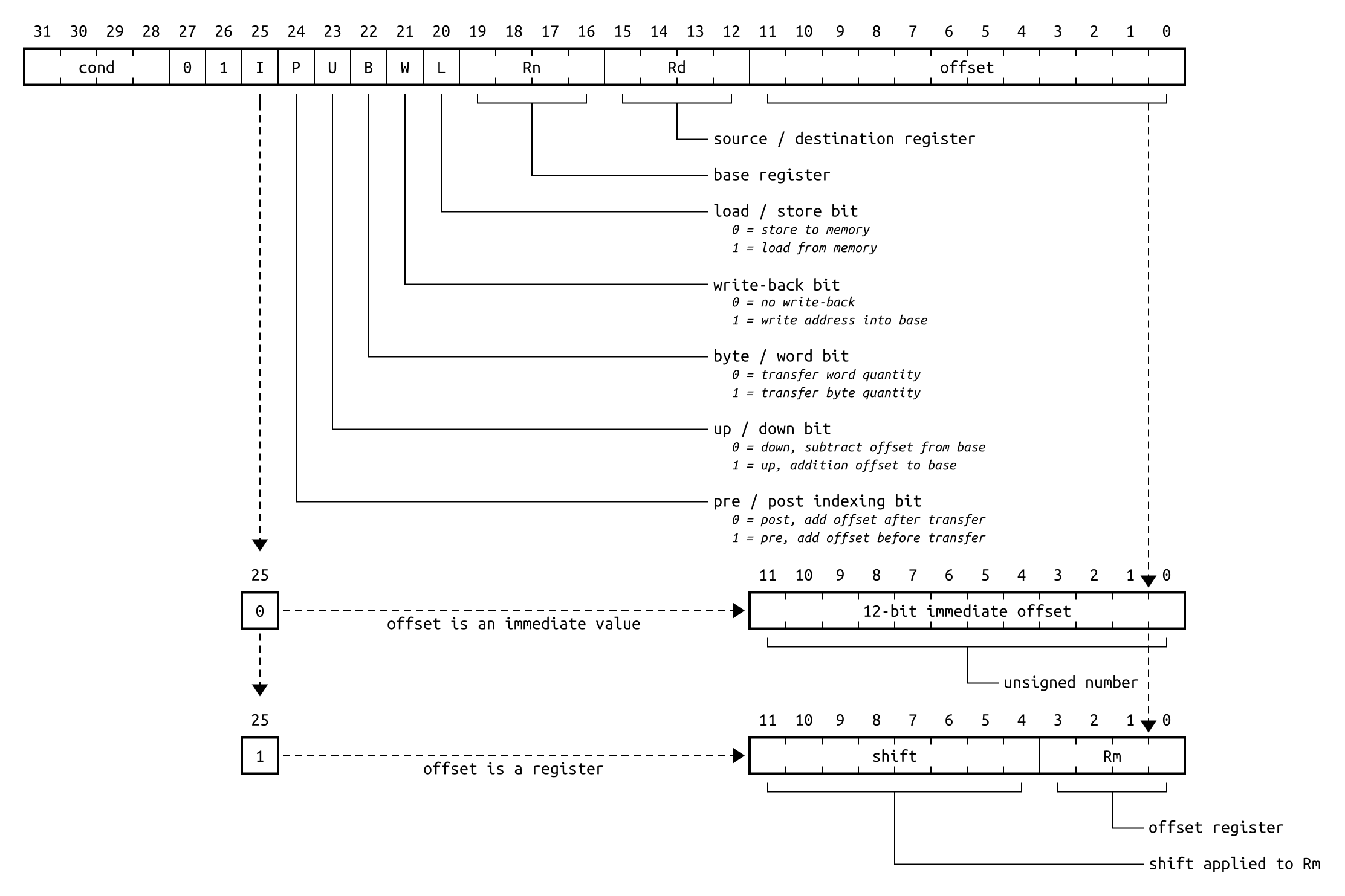

| A bit of eveything |
|

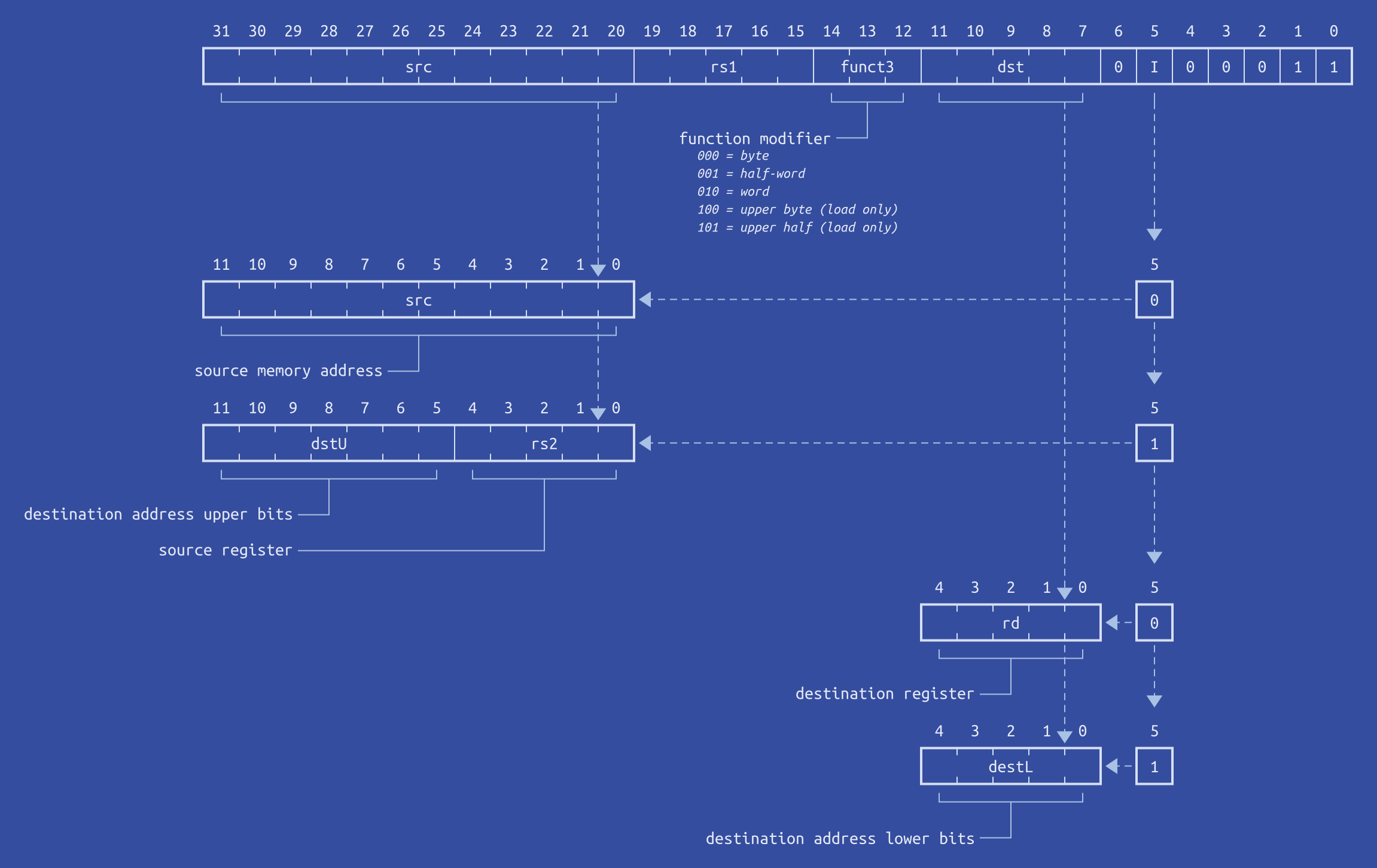

| RISC-V memory instructions (blueprint) |
Click on the example image to jump to the code.
Usage
For more information, see the manual
To use this package, simply import schema from rivet and call schema.load to parse a schema description. Then use schema.render to render it, et voilà !
#import "@preview/rivet:0.3.1": schema
#let doc = schema.load(yaml("path/to/schema.yaml"))
#schema.render(doc)
