StateMachine03 Class Reference

#include <statemachine03.h>

Inheritance diagram for StateMachine03:

Collaboration diagram for StateMachine03:

Protected Types
enum	eTimeoutId { Timeout_WAIT_id = 1 }
enum	eMainState { STATE_UNKOWN = 0 , STATE_INITIAL = 1 , STATE_WAIT = 2 , STATE_SEND_RESTART = 3 }

Protected Member Functions
XFEventStatus	processEvent () override

Protected Attributes
eMainState	currentState_
	Attribute indicating currently active state.

Detailed Description

Implements a state machine sending itself an evRestart event, to drive the state machine further.

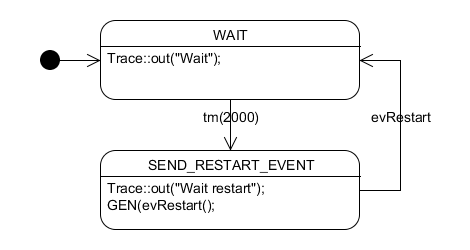

Following you will find the state machine implemented by StateMachine03:

State Machine implemented by StateMachine03

Member Enumeration Documentation

eMainState

enum StateMachine03::eMainState

protected

Enumeration used to have a unique identifier for every state in the state machine.

Enumerator
STATE_UNKOWN	Unkown state.
STATE_INITIAL	Initial state.
STATE_WAIT	Wait state.
STATE_SEND_RESTART	State sending an restart event.

eTimeoutId

enum StateMachine03::eTimeoutId

protected

Timeout identifier(s) for this state machine

Enumerator
Timeout_WAIT_id	Timeout id for WAIT.

Member Function Documentation

processEvent()

XFEventStatus StateMachine03::processEvent ( )

overrideprotected

Implements state machine behavior.

---

The documentation for this class was generated from the following files:

• C:/Users/thomas.sterren/Desktop/PTR_XF_Release/03-release/work/test-bench/test3/src/app/statemachine03.h
• C:/Users/thomas.sterren/Desktop/PTR_XF_Release/03-release/work/test-bench/test3/src/app/statemachine03.cpp
