Public Member Functions
	StateMachine04a ()
	Constructor.

void	setNeighbour (XFBehavior *pNeighbour)

XFBehavior *	getNeighbour () const

Protected Types
enum	eTimeoutId { Timeout_WAIT_id = 1 }

enum	eMainState { STATE_UNKOWN = 0 , STATE_INITIAL = 1 , STATE_WAIT = 2 , STATE_SEND_RESTART = 3 }

Protected Attributes
eMainState	currentState_
	Attribute indicating currently active state.

XFBehavior *	pNeighbour_
	Association to the neigbour state machine.

Detailed Description

Implements a state machine sending its neighbour state machine an evRestart event every four seconds.

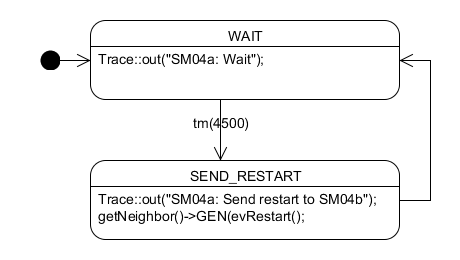

Following you will find the state machine implemented by StateMachine04a:

State Machine implemented by StateMachine04

Member Enumeration Documentation

protected

Enumeration used to have a unique identifier for every state in the state machine.

Enumerator
STATE_UNKOWN	Unknown state.
STATE_INITIAL	Initial state.
STATE_WAIT	Wait state.
STATE_SEND_RESTART	State sending an restart event.

protected

Timeout identifier(s) for this state machine

Enumerator
Timeout_WAIT_id	Timeout id for WAIT.

XFBehavior * StateMachine04a::getNeighbour ( ) const

Returns reference to neighbour state machine.

XFEventStatus StateMachine04a::processEvent ( )

overrideprotected

Implements state machine behavior.

void StateMachine04a::setNeighbour ( XFBehavior * pNeighbour )

Sets the association to the neighbour state machine. Call this method prior the start the state machine.

The documentation for this class was generated from the following files:

C:/Users/thomas.sterren/Desktop/PTR_XF_Release/03-release/work/test-bench/test4/src/app/statemachine04a.h
C:/Users/thomas.sterren/Desktop/PTR_XF_Release/03-release/work/test-bench/test4/src/app/statemachine04a.cpp
