Inheritance diagram for StateMachine02:

Collaboration diagram for StateMachine02:

Protected Types
enum	eTimeoutId { Timeout_PRINT_COUNT_id = 1 }

enum	eMainState { STATE_UNKOWN = 0 , STATE_INITIAL = 1 , STATE_PRINT_COUNT = 2 , STATE_CONDITION_01 = 3 , STATE_TERMINATION_01 = 4 }

Protected Attributes
eMainState	_currentState
	Attribute indicating currently active state.

const uint32_t	id
	Object identifier.

int	counter
	Count down attribute used in state machine.

Static Protected Attributes
static uint32_t	nextId = 1
	Static attribute providing identifier for next object.

Detailed Description

Task implementing a state machine doing a count down from 5 to 1 and terminating.

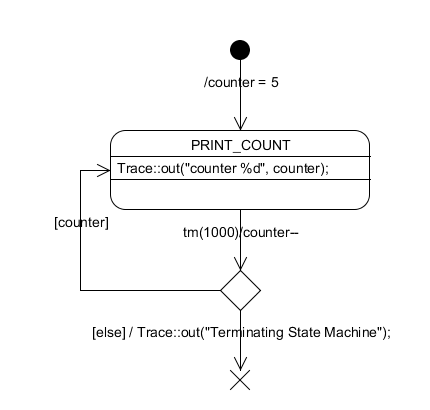

Following you will find the state machine implemented by StateMachine02:

State Machine implemented by StateMachine02

Member Enumeration Documentation

protected

Enumeration used to have a unique identifier for every state in the state machine.

Enumerator
STATE_UNKOWN	Unkown state.
STATE_INITIAL	Initial state.
STATE_PRINT_COUNT	Print count state.
STATE_CONDITION_01	Condition after print count state.
STATE_TERMINATION_01	Termination state.

protected

Timeout identifier(s) for this state machine

Enumerator
Timeout_PRINT_COUNT_id	Timeout id for WAIT.

XFEventStatus StateMachine02::processEvent ( )

overrideprotected

Implements state machine behavior.

The documentation for this class was generated from the following files:

C:/Users/thomas.sterren/Desktop/PTR_XF_Release/03-release/work/test-bench/test2/src/app/statemachine02.h
C:/Users/thomas.sterren/Desktop/PTR_XF_Release/03-release/work/test-bench/test2/src/app/statemachine02.cpp
