rivet-typst

RIVET (Register / Instruction Visualizer & Explainer Tool) is a Typst package for visualizing binary instructions or describing the contents of a register, using the CeTZ package.

It is based on the homonymous Python script

Examples

A bit of eveything

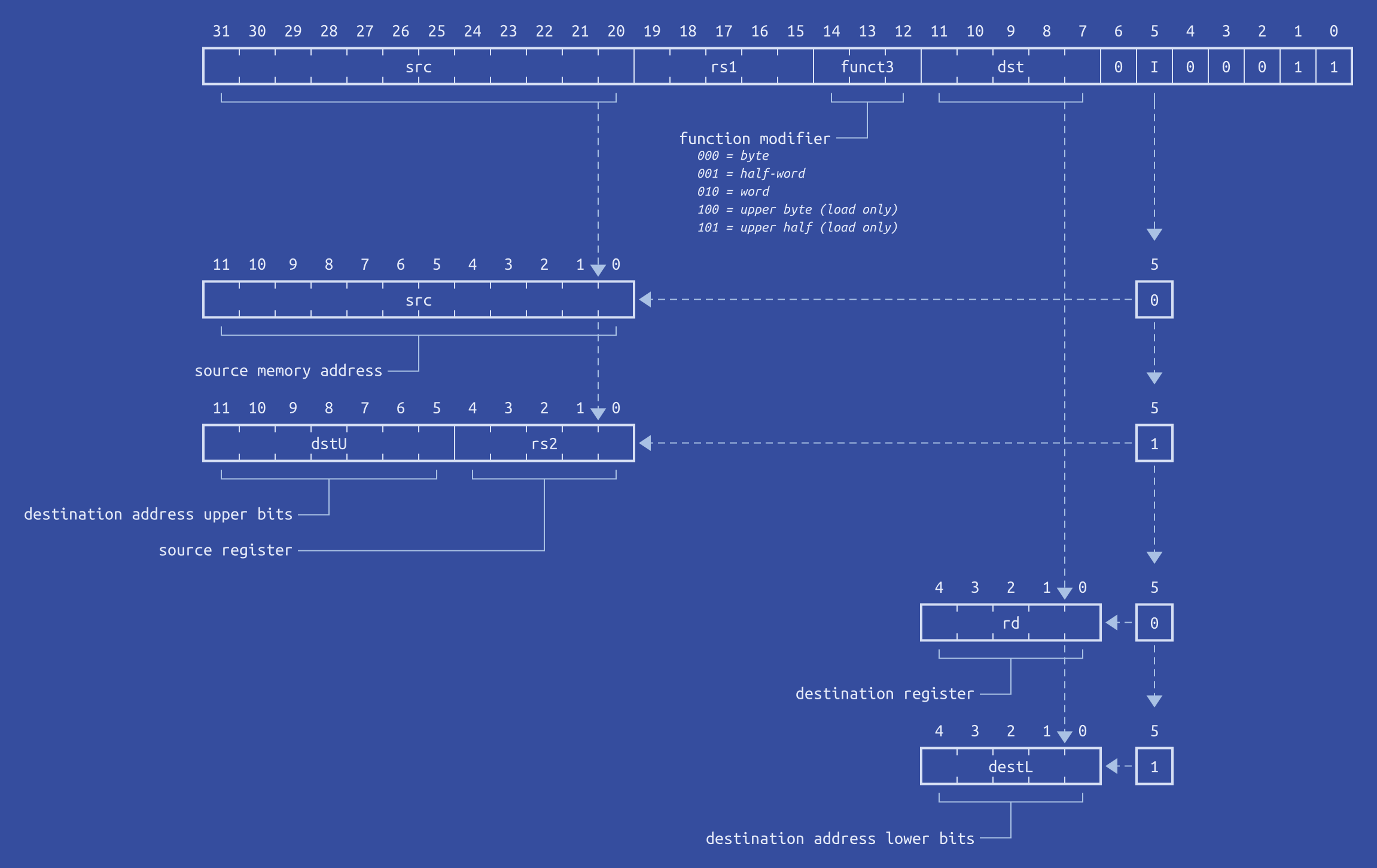

RISC-V memory instructions (blueprint)

Click on the example image to jump to the code.

Usage

For more information, see the manual

To use this package, simply import schema from rivet and call schema.load to parse a schema description. Then use schema.render to render it, et voilà !

#import "@preview/rivet:0.3.1": schema
#let doc = schema.load(yaml("path/to/schema.yaml"))
#schema.render(doc)
